KoKo Legend
Portable Spirometer

    Koko Legend
  • Intuitive Touch Screen Operation
  • Hi-Resolution Incentive Display
  • Stores over 1000 patient test records on each compact flash memory card
  • Brilliant color touch display
  • Built-in printer as well as direct connection for 8 1/2” x 11” printing
  • Unique flexible orifice Pneumotach
  • Simple USB to KoKo Spirometry Software download
  • Uses industry standard KoKo Filters
  • Fully rechargeable battery operation
  • Optional modem and network connectivity

Call for availability.

For years the KoKo Spirometer has been the leader in PC-based Spirometry. We’ve kept to our high standards in producing our first full-function Desktop Spirometer, at an affordable price.

The KoKo LEGEND, designed with an easy to operate color touch-screen, walks both physician and patient through standard testing procedures. Our realistic animated incentive graphic allows the FVC test to be performed with a real-time on-screen display.

Test results can easily be transferred to the KoKo PFT Spirometer Software via the standard USB cable.


Brochure

Specifications




PulmoLife




(Requires Macromedia Flash)

PulmoLife is a new COPD screening device, designed for quick and easy screening of adult smokers for early detection of COPD.

A COPD screening device reporting FEV1 and 'Lung Age'

PulmoLife is a new COPD screening device, designed for quick and easy screening of adult smokers for early detection of COPD. Smokers are at the greatest risk of developing COPD and decline in lung function in susceptible smokers has been shown to be twice that of non-smokers.

This small, innovative device measures FEV1, the measurement of choice in COPD screening. The unit will display a patient's result together with the FEV1 as a percentage of their predicted value. These results are used to calculate a 'Lung Age'. The associated 'Lung Age' graphical display may help the patient realize the physical damage caused by smoking, encouraging attendance for smoking cessation advice and full spirometry assessment, leading to early diagnosis and appropriate management of COPD

Suitable for

FEV1 and FEV1% predicted

Forced Expiratory Volume in the First Second of Expiration. The use of FEV1 is well documented as a useful diagnostic tool for the detection of early COPD. When comparing its result against predicted values and using patients FEV1 result as a percentage of predicted values (FEV1% predicted) the likelihood and severity of COPD can be seen.

'Lung Age'

In addition to comparing patients FEV1 results with the predicted reference values for normal subjects, estimation of 'Lung Age' can be used to demonstrate to smokers the damage caused to their lungs by smoking in a way they can understand. The 'Lung Age' estimation is based on a patients FEV1 results and predicted values. A 'Lung Age' example; a 40 year old 5'9" (1.75m) male smoker has an FEV1 of 3.4L giving an estimated 'Lung Age' of 52 years. This is because the FEV1 is 100% of the predicted value that a 52 year old would be expected to get.

Features

PulmoLife continues the Micro Medical tradition of being accurate and simple to use and provides health professionals with a useful and unique mass-screening tool to help reduce the burden of chronic lung disease.

Specification:

Transducer:  Digital Volume Transducer
Resolution:  0.01L
Accuracy: +/-3% (meets, and exceeds all known spirometry performance standards)
Volume Range: 0 - 8 Litres
Flow Range: 0-14 Litres/Second
Predicted Values: 1) ECCS   2) NHANES III   3) Asian (Chinese)
Display: Custom Liquid Crystal
Power Supply: 3V Lithium Ion Coin Cell Battery
Dimensions: 131 x 59 x 38 mm
Weight: Unit only: 96g Unit complete with accessories: 226g
Operating Temperature: 0 to +40 C
Operating Humidity: 30% to 90% RH

Storage Temperature: -20 to + 70 C
Storage Humidity: 10% to 90% RH

Consumables / Components:

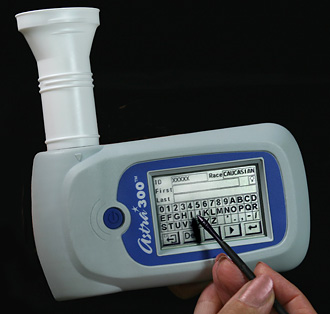

Astra300 Spirometer

Astra 300
Features:
  • Bright, sensitive touchscreen
  • Multifunctional capabilities
  • View both graphic and tabular data
  • Easy to use
  • Export test data to a printer or PC via USB
  • NIOSH and SSA Guidelines Compliant
Click here to view all models


ndd EasyOne Spirometer


ndd EasyOne Spirometer


Ask about current specials!

EasyOne Diagnostic
New cutting edge highly configurable spirometer. Features; FVC, FVL and MVV testing. The graphic curve display allows quick assessment of results. Meets ATS recommendation for diagnostic spirometry.
Ideal for: Allergists, Pulmonologists, Clinics, Hospitals, Occupational Medicine, Pediatric, Internal Medicine and Family Practice.

EasyOne Frontline
New simple, easy to use spirometer is ideal for the simple assessment of lung health in the office setting. Features FVC testing. Meets ATS recommendation for diagnostic spirometry.
Ideal for:
Primary Care, Emergency Rooms, Bedside Monitoring, Health Fairs, Fitness Centers, Monitor Lung Transplants and Home Care.


EasyOne Specifications

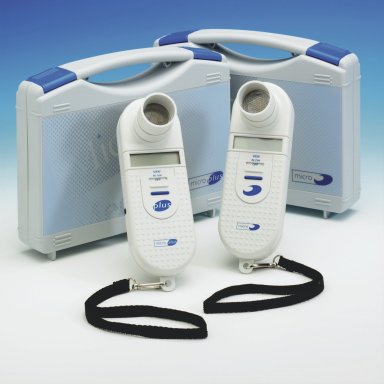

Micro and MicroPlus Spirometers



Micro and MicroPlus Spirometers





The  Micro and MicroPlus Spirometers are specifically designed for situations where a low cost respiratory monitor is required. Selected for Heart-Lung transplant programs world-wide and for major clinical trials in the respiratory field as well as for everyday physician use. Their proven accuracy and reliability being endorsed with a British Design Award for the Micro Spirometer in 1989 as well as customers world-wide with over 20,000  spirometers in daily use. The Micro Spirometer displays FEV1 and FVC, and the MicroPlus Spirometer displays FEV1, FVC, PEF, and FER. The Spirometer is fully compatible with Spida 5 (TM) and is supplied with software to graph FEV1/FVC/PEF against time to allow an instant picture of patient performance.


Features


Customer Benefits
Measuring Forced Expired Volume in one Second and Forced Vital Capacity on theMicro Spirometer, with the additional measurements of Peak Expiratory Flow andForced Expired Ratio on the MicroPlus, these devices are the perfectinexpensive spirometers for all applications.

Ease of Use
Measurements are easily obtained and displayed on the large, easy to readliquid crystal display. A centralized switch with viewing window facilitatesoperation with either hand. The transducer is removable to allow a high levelof hygiene at all times, and is supplied complete with all necessaryaccessories.

Design Innovation
Ergonomically designed units of distinctive appearance, the textured handgripencourages easy, and reassuring use for both adults and children. These Spirometersare small and light-weight, moulded from high impact ABS for durability and arevirtually maintenance free.


Specifications


MicroDL Spirometer



MicroDL Spirometer





The new MicroDL is specifically designed for both patient use at home as well as large scale clinical trials featuring a memory capability for date and time and the three most common respiratory parameters for over a months use.

The Spirometer is fully compatible with Spida 5 (TM) and is supplied with software to graph FEV1/FVC/PEF against time to allow an instant picture of patient performance. The Micro DL has the capability to act as a normal MicroPlus Spirometer with its proven accuracy and reliability at any time.



Features

  • Digital transducer for accurate repeatable measurements.
  • Competitively priced.
  • Easy to use, clean and maintain.
  • Small lightweight and portable
  • Printer Output
  • Auto turn off.
  • Spida 5 (TM) compatible.
  • Complimentary software.
  • Storage of 99 data sets.
  • Modem compatible


Customer Benefits
The MicroDL provides an extremely cost effective and reliable method ofcollecting spirometry data over an extended period. Used in conjunction withthe PC software, the spirometer becomes a powerful data recording and analysisinstrument.

Ease of Use
Measurements are easily obtained and displayed on the large, easy to readliquid crystal display. A centralized switch with viewing window facilitatesoperation with either hand. The transducer is removable to allow a high levelof hygiene at all times, and is supplied complete with all necessaryaccessories.

Design Innovation
An ergonomically designed unit of distinctive appearance, the textured handgripencourages easy and reassuring use for both adults and children. Thisspirometer is small and light-weight, moulded from high impact ABS fordurability and is virtually maintenance free.


Specifications


MicroGP Spirometers

MicroGP Spirometers

The new MicroGP is specifically designed for use by doctors in general practice. It provides all the convenience of the MicroPlus Spirometer with the capability of producing a direct printout to a suitable printer.

The Spirometer is fully compatible with Spida 5 (TM) and is supplied with software to graph FEV1/FVC/PEF against time to allow an instant picture of patient performance.





Features

  • Digital transducer for accurate repeatable measurements.
  • Competitively priced.
  • Easy to use, clean and maintain.
  • Small lightweight and portable
  • Printer Output
  • Auto turn off.
  • Spida 5 (TM) compatible

Customer Benefits

The MicroGP is extremely cost effective and reliable, and provides a direct printout of the spirometry session on standard US letter paper.Used in conjunction with Spida TM, the spirometer becomes a powerful data recording and analysis instrument.

Ease of Use

Measurements are easily obtained and displayed on the large, easy to read liquid crystal display. A centralized switch with viewing window facilitates operation with either hand. The transducer is removable to allow a high level of hygiene at all times, and is supplied complete with all necessary accessories.

Design Innovation

An ergonomically designed unit of distinctive appearance, the textured handgrip encourages easy and reassuring use for both adults and children. This spirometer is small and light-weight, moulded from high impact ABS for durability and is virtually maintenance free.


Specifications


MicroLab 3500S Spirometer



Call for a Quote
Highly portable and beautifully designed, the new generation MicroLab has been developed for the professional. Employing Micro Direct?s acclaimed precision GOLD STANDARD Digital Volume Transducer (especially suited to measuring very low flow rates in patients with COPD) the instrument has a wide angle, high-resolution colour touch-screen.

All the unit?s features can be easily accessed by simply touching the chosen function?s corresponding icon. This, together with fast textual data entry using a stylus or the optional MicroMouse makes the system?s use highly intuitive. A quiet and very fast printer with easy-load paper mechanism is integrated. The printout can be fully customised and can also be linked directly to external printers.

Equipped with many advanced functions the MicroLab is supplied with Spida 5, the worlds? most comprehensive Spirometry PC software package, and meets all International standards for performance and accuracy. There are over 40,000 MicroLab Spirometers in use around the world; this new generation model is truly the most advanced portable Spirometer.

Gold Standard Transducer

Setting new standards in spirometry

The Gold Standard transducer from Micro Direct gives the most precise volume and flow measurements for Asthma and COPD patients. Especially effective at low flows, it complies with all current ATS and other recognised international standards for accuracy. This means that Micro Direct?s world beating spirometers are the definitive benchmark for accurate respiratory measurement bar none.

Digital Volume Transducer Spirometers are NOT ALL THE SAME.



Features

  • High definition colour touch-screen
  • Simple screen icon interface using stylus or optional MicroMouse
  • Fast on-screen textual entry enabling comments and report writing
  • Fast, quiet printer with easy load paper mechanism
  • Fully customisable printout format
  • Direct connection to external Hewlett Packard printers.
  • Unique contextual Help Screens (language selectable) with dedicated Help Button
  • 41 inspiratory and expiratory indices measurable
  • On-screen graphical child incentive device
  • Large 2000 patient test memory
  • Spida 5 PC software included
  • Internationally recognised on-screen test quality assurance prompts (e.g. slow start, abrupt end etc.) ensuring quality test results
  • Unique ?today?s testing feature? - creating a list of patients tested or to be tested
  • Numerous predicted values and languages selectable
  • ?Lung Age? assessment and textual result interpretation by ATS (9), BTS-NICE (10) or Enright (11)
  • Body Mass Index and Dyspnoea Score
  • Bronchodilator and/or Steroid assessment
  • Complete with all accessories in a sturdy carrying case

Specification


  Spirometry
Measurements (forced): VC, FEV.75, FEV1, FEV3, FEV6, FVC, PEF, FEV.75/VC, FEV.75/FVC, FEV1/VC, FEV1/FVC (FER), FEV3/VC, FEV3/FVC, FEV.75/FEV6, FEV1/FEV6, FEF25 (MEF75), FEF50 (MEF50), FEF75 (MEF25), FEF25-75 (MMEF), FEF50/VC, FEF50/FVC, MMEF/FVC (FEF25-75/FVC), FIV1, FIVC, PIF, FIV1/FIVC (FIR), FIF25 (MIF75), FIF50 (MIF50), FIF75 (MIF25), R50 (FEF50/FIF50), MET25-75, FET, MVV (ind)
Measurements (relaxed): EVC, IVC, IC,VT (TV), ,Ti,Te,Ti/Ttot.,VT/Ti (TV/Ti), IRV, ERV, FR
Tests per subject: 5 relaxed VC maneuvers and 8 forced maneuvers for each baseline and two post examinations
Predicted Values: Knudson, Crapo or NHANES III
Transducer: Micro Direct Gold Standard Bi-Directional Digital Volume
Resolution: 10ml volume 0.03l/s flow
Accuracy: +/-3%.To ATS recommendations ? Standardisation of spirometry 1994 update for
flows and volumes
  General
Storage: 2000 patients? tests including Flow/Volume loops and Volume/Time graphs
Printer Output:
(external printers)
Compatible with a wide range of Hewlett Packard printers; contact us for details.
Printer Output:
(internal printer)
0.5" per second (avg) print speed.
Power Supply: 100 ? 240V AC 50 ? 60Hz. DC output 12V 2.5A
Battery Pack: Rechargeable NiMH 8.4V 1Ah
Dimensions: 5" x 10" x 1.5".Transducer 2"x 2"x 3.5"
Weight: Excluding any transducers: 1 lb 7 oz.
Temperature: The instrument will operate in a uniform environment of 32?F - 96?F, out of direct sunlight
Operating Humidity: 30% to 90% non-condensing
Storage Temperature: 0 to +144?F
Storage Humidity: 10% to 90% RH
Connectivity: RS232 serial and USB 1.1

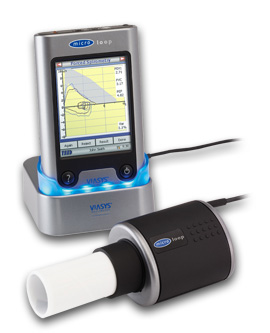

MicroLoop Spirometer



MicroLoop Spirometer

The new MicroLoop is the ultimate pocket spirometer allowing high quality measurements to be made virtually anywhere. Featuring a bi-directional digital volume transducer with its proven accuracy and stability, the MicroLoop displays to its high resolution screen actual, predicted and percent predicted with the option of interpretation and lung age. The Spirometer is fully compatible with Spida 5 (TM) and is supplied with software to graph FEV1/FVC/PEF against time to allow an instant picture of patient performance.) The MicroLoop can be used as a remote data collection spirometer with a 90 flow/volume loop capacity, or as a PC spirometer system. The new MicroLoop also has a wide variety of print options allowing full 8 x 11 reports to be generated directly.


Features

  • Digital transducer for accurate repeatable measurements.
  • Competitively priced.
  • Easy to use, clean and maintain.
  • Small, lightweight and portable.
  • Auto turn off.
  • Spida 5 (TM) compatible
  • Printer output.
  • Modem compatible
  • Complimentary software.
  • Storage for 90 patients.


Specifications


SpiroUSB Spirometer

SpiroUSB Spirometer The Micro Medical Spiro USB is an advanced Spirometer designed for the professional that plugs directly into your PC. The software is structured around Spida 5 with its user-friendly modern multi-window visual interface. Up to 41 spirometry indices are measurable, open and closed loop test techniques and the overlaying of previous test curves is possible. Extensive search facilities and powerful trending of results together with lung age calculation and textual interpretation of the results feature. The software can be easily linked to other patient journal or GP administration systems, occupational health or other medical databases. With a laptop or notebook PC the SpiroUSB becomes highly portable too.

Specifications

Transducer: Micro Medical Gold Standard Bi-Directional Digital Volume
Resolution: 10ml volume 0.03l/s flow
Accuracy: +/-3%.To ATS recommendations – Standardisation of spirometry 1994 update for flows and volumes
Dimensions: Transducer 2" x 2.5" x 3.5"
Weight: 4.6 oz
Operating temperature: 32 to 104 °F
Operating humidity: 30% to 90% RH
Storage temperature: 32 to 158 °F
Storage humidity: 10% to 90% RH

This Spirometer is part of an extensive range of Respiratory Measurement devices.

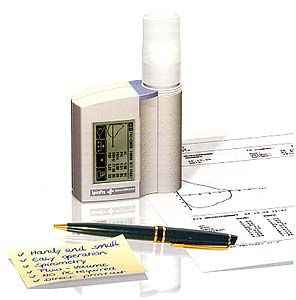

SpiroPro Spirometer

SpiroPro Spirometer





The SpiroPro? conveniently measures pulmonary function parameters (FVC, FEV1, FEF2575, PEF...) and displays the complete Flow/Volume loop. The response to bronchodilator medication (Pre/Post) and serial spirometry measurements (Date/Time) can be used to follow patients in the office, at home or at work. An internal spirometry evaluation LOGIC program can provide an assessment of the results for immediate clinical review. The SpiroPro? is engineered to easily make accurate measurements in:

  • Medical Office or Clinic.
  • Patient Bedside or ER.
  • Worksite (Occupational Asthma).
  • Self administered in the Patients' Home.



Features The SpiroPro? uses a simple graphic/icon based user interface screen. Patient demographic data can be entered, including alphanumeric data, using the touch screen. Picture-based navigation and the logical menu structure make data entry, collection of spirometry data, and the viewing or printing of tabular and graphic results simple. The SpiroPro? can easily maintain multiple patient files with multiple spirometry records for each patient in the integrated onboard data base.

The SpiroPro? creates a Pulmonary Function Report, including a customized report heading, patient demographic information, tabular and graphic results, including reference "normal" Flow/Volume loop. Reports can be printed directly from the SpiroPro? to a PCL compatible printer (e.g., HP Deskjet series). Data can be exchanged with a PC using the optional SpiroPro? for Windows? software and the serial data interface. The SpiroPro? pneumotachometer is positioned within a removable sleeve that can be replaced or removed for easy disinfection.

System Description
SpiroPro? is a complete measuring and diagnostic system for measurement, recording and assessment of the Flow/Volume parameters and Flow/Volume curve. The evaluated data can be printed directly to a PCL-compatable printer.

Control unit
A microprocessor provides input and output, acquisition, storage and analysis as well as communication with external equipment, such as printer and PC.


Specifications


Micro RPM

Micro RPM

The Respiratory Pressure Meter is a new hand held device for the assessment of respiratory muscle strength and features a clear digital display of either expiratory or inspiratory pressure measured in cmH2O. Combining both accuracy and simplicity at an economical price the Micro RPM is eminently suitable for use by all healthcare professionals.



Features

  • Small, lightweight and portable. Competitively priced and supplied complete with all necessary accessories. Easy to use. Provides digital display of both expiratory and inspiratory pressure. Minimal maintenance and easy to clean.
  • Solid state transducer for accuracy and long term stability.


Customer Benefits
The  RPM utilizes the latest piezo resistive pressure sensing technology to achieve accuracy and long term stability in a simple to use hand held unit. The sophisticated electronics calculate the maximum effort sustained for at least one second and display this result in cmH2O.

Ease of Use
The strength of the respiratory muscles may be easily measured and displayed on the easy to read, liquid crystal display. The transducer assembly is simple to remove for cleaning to allow a high level of hygiene at all times. The complete unit and accessories are housed in a rugged carrycase for use anywhere.

Design Innovation
An ergonomically designed unit of distinctive appearance. The textured handgrip encourages easy and reassuring use for both adults and children. The Micro RPM is small and lightweight and is moulded from high impact ABS for durability and is virtually maintenance free.


Specifications
